RTCS-1000
Test Source for Overcurrent Protective Relay



RTCS-1000 - Test Source for Overcurrent Protective Relay


0...1000 Aac max, 0...3.5 Vac max
0...450 Aac max, 0...9 Vac max,
Sine-wave current,
Zero-crossing SoftStart start-up,

Autorange ammeter,
Timer with auto-stop function,
Thermal protection,

Ventilated caseing,
Aluminium casing with accesories.

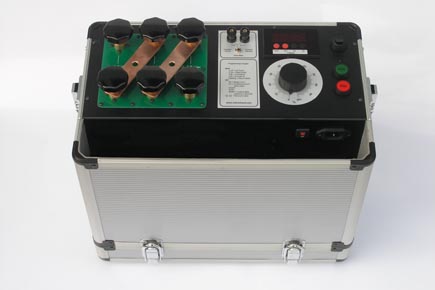

1. Output connectors,
2. Stop signal selector (NO or NC),
3. Stop signal connector,
4. Counter,
5. Button "Mod",
6. Button "Set",
7. Button "Left",
8. Button "Up",
9. Mains switch,
10. Overheating signal lamp,
11. Current source Start,
12. Current source Stop,
13. Output current regulator,
14. Ventilator.



Download:

-User manual (PDF 854 KB )
-Technical specification (PDF 1 MB )
- RTCS-1000 - block schematic
(PDF 314 KB)
- EXTECH EX 800 Series Clamp Meters user`s guide (PDF 443 KB)
- EXTECH EX 800 Series Clamp Meters datasheet (PDF 606 KB)
