Triple
audio D/A converter, no-oversampling, no-digital filter, no-analog
filter and no-operational amplifiers. Output is taken
directly from D/A converter chips for maximum resolution,
excellent ambient recreation, and most natural sound
reproduction of any kind of music. While testing this great
circuit we have found large differences in distorsion
spectrum by changing number of DAC chips and fine tuning
bias/load values. We opted for three DAC chips in parallel
with bias and load resistors set for minimum yet natural
distorsion spectrum.
Features:
MKP/MKT foil capacitors ,1% metal-film resistors ,Coax input
transformer, Optical input (optional), 3x TDA1543 Philips
DAC, CS8412 low jitter digital receiver, triple Shunt
voltage regulators, Dual series regulators, triple Choke
filters, dual power transformers.
Input: SPDIF Coaxial, transformer coupled,
Output: 1 Vrms,
Output impedance: 100 Ohms,

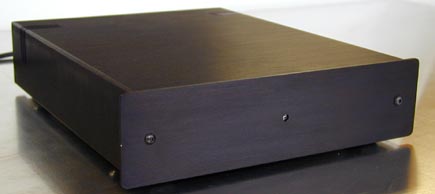

2 mm aluminum black polished and anodized case
Measurements: 235x55x285 mm
Price: 545,00 euro + shipping and handling |
