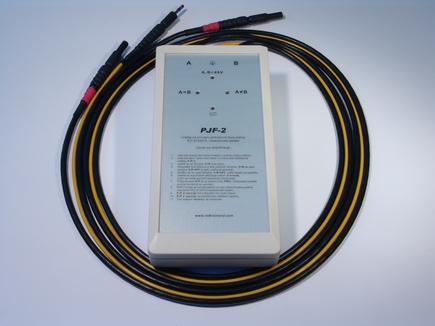

PJF-2
Electronic Phase Comparator 10...36kV

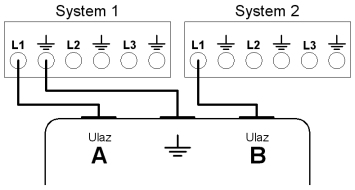

Medium Voltage Electronic Phase Comparator (10...36 kV) for Capacitive Divider type Voltage Detecting Systems according to IEC 61243-5 (DIN VDE 0682 T415 High Resistance)







Specification

- test voltage: 63...540 Vac, 50 Hz
- phase angle indication
  >30° different phases
  <15° same phases
- batteries: 4×1,5 V, Alkaline, Mignon, LR6 or AAA
- auto power OFF after 8 minutes
- working temperature: -25...+55°C
- case protection class: IP 65
- material: ABS, RAL 9002
- dimensions: 252×121×52 mm



For other details please contact us.
